Display
Display Ad Guidelines
Supported Display Ad Types
- GIF, JPEG, PNG image files
- Third-Party Ad Tags from approved ad servers (HTML or raw JavaScript)
- Expandable rich media – supported through third-party with some limitations (please speak with your account manager)
- HTML5 creatives
Supported Display Ad Sizes*
| Display | Mobile | Tablet |
|---|---|---|
| 160×600 | 300×50 | 300×250 |
| 300×250 | 320×50 | 728×90 |
| 728×90 | 300×250 | 1024×768 |
| 300×600 | 320×480 | 768×1024 |
*Inventory varies greatly by exchange and region. All formats may not be available in all cases. Contact your account manager to learn more about ad sizes available in your area. *In addition to the above sizes, we are able to book custom ad sizes across a large number of publishers. If a size is needed that is not listed above, please reach out to your account manager.
Expandable Ad Guidelines
Any display ad size we support can be declared expandable, although inventory will vary based on size and direction. See recommendations below:
- Expandable ads are supported via 3rd-party tags only.
- Required Declarations: Expansion Direction(s), Expansion Action and Expandable Ad Server.
Recommended Expandable Ad Sizes
| Original Ad Size | Expansion Direction | Expanded Ad Size |
|---|---|---|
| 300×250 | Left | 500×250 |
| 728×90 | Down | 728×270 |
| 160×600 | Left | 300×600 |
| 300×600 | Left | 560×600 |
HTML5 Creative Guidelines
Ntooitive has the ability to serve both 1st and 3rd-party HTML5 creatives. You will find the guidelines for 1st-party hosted HTML5 creatives below.
Method 1: Single HTML File
- All information for serving the creative (with the exception of commonly used JavaScript and CSS libraries) should be included in the HTML file.
- The maximum HTML file size is 200 KB.
Method 2: ZIP Compressed File
- All files for displaying the creative (with the exception of commonly used JavaScript and CSS libraries) should be included in the ZIP file.
- The primary HTML file should be located in the root of the ZIP file.
- ZIP files must contain no more than 100 files, including at least one HTML file for use as the initiating file for display. (We suggest keeping the file count low to minimize browser performance impact.)
- Only file types of HTML, JS, CSS, JPG, JPEG, GIF, PNG, and SVG may be included in the ZIP file.
Maximum File Size Requirements
| Requirement | Maximum Size |
|---|---|
| Automatically-started video | Less than 1.1 MB |
| Any individual file | 2.2 MB |
| Primary HTML file | 100 KB |
| ZIP file compressed | Less than 10 MB |
| ZIP file uncompressed | Less than 12 MB |
Other Specifications
- File Size: 150 KB or smaller (Applies to 1st and 3rd-party ads)
- Creative Images
- Must be clear, recognizable, and relevant; text appearing in the ad must be legible
- Must occupy the entire space of the image size you’ve chosen
- Cannot appear sideways or upside down
- Cannot be segmented, contain multiple copies of itself within the ad, or otherwise appear to be more than one ad.
- For creatives with partially black or white backgrounds, you must add a visible border of a contrasting color to the majority background color of the ad.
- All creatives must open a new page on click. They cannot open on the same page.
- Animated Ads: Restricted to a maximum of 15 seconds of looping, after which point they must remain static.
- HTML5: Must use the clickTAG function.
- In-Banner Video Creatives
- Should be in HTML5 format with a 50 KB max file load and a 2 MB load for the secondary file.
- Ads must include the play, pause, mute and unmute controls.
- Click to Play Ads: There is no length limit for click to play video ads. The video should immediately go to the landing page upon completion.
- Auto-Start Video Ads
- For auto-start video ads, there is a 15 second limit.
- Audio should not be heard unless initiated by a mouse-over.
- Video should be backstopped by a static 300×250, which should click through to a landing page.
Prohibited Characteristics
Advertisements may not involve the following:
- Promote online gambling, including paid, free, or gateway to paid gambling. Brick and mortar gambling is acceptable.
- Depict or deliver libelous, violent, tasteless, hate, defamatory, or illegal content.
- Portray partial or complete nudity, pornography, and/or adult themes and obscene content.
- Spawn pop-ups, simulate clicks, or contain malicious code, viruses, or executable files of any kind.
- Deliver surveys via floating layers, pop-ups or pop-unders.
- Contain explicit language, spelling mistakes, or simulated expletives (e.g., #$%!)
Online Video
Video Specs
Supported Video Length: 15 seconds · 30 seconds · 60 seconds
- Video Length Video must be less than or equal to requested duration (e.g., we can bid on a 15-second request with a 10-second video.)
Video Dimensions: 400×225 · 400×300 · 480×360 · 640×360 · 1920×1080
- All Ntooitive-hosted videos will be scaled to fit the player size on the screen
Supported Companion Ads: 300×250 · 300×60 (necessary for YouTube TrueView)
- Only standard image files are accepted.
Notes Regarding Video Dimensions
- Google only supports: 480×360, 640×360, and 1920×1080
- If Ntooitive is hosting the video, we will automatically encode any 400×225 and 400×300 video ads to fit Google’s size requirements by adding letterboxes.
- If you are using a 3rd-party tag, you will need to use the Google approved ad formats if you want to run on Google.
Video Placement: Pre-Roll (This represents the majority of RTB inventory) · Mid-Roll · Post-Roll
Recommended Aspect Ratios: 4:3 · 5:2 · 16:9
- If Ntooitive is hosting, we will encode and automate to the correct size
Ntooitive-Hosted Video Specs
If Ntooitive is hosting the video, the specs are as follows:
- Supported File Types: MP4, WebM, MOV, WMV, MPG, MPEG
- Supported File Size: Maximum is 60 MB. Ntooitive will encode the video down to a workable file size (2 to 5 MB).
Third-Party Video Tags Specs
Supported Tag Type: VAST 2.0
- In order to be accepted by the exchanges, this tag must include the following files:
- H.264 (MP4)
- Other formats may be included but will not be used
- WebM is recommended, but not required
- VPAID is not supported
Supported File Size
- Recommended is 1 MB. Maximum is 10 MB.
Prohibited Characteristics
Advertisements may not involve the following:
- Promote online gambling, including paid, free, or gateway to paid gambling. Brick and mortar gambling is acceptable.
- Depict or deliver libelous, violent, tasteless, hate, defamatory, or illegal content.
- Portray partial or complete nudity, pornography, and/or adult themes and obscene content.
- Spawn pop-ups, simulate clicks, or contain malicious code, viruses, or executable files of any kind.
- Deliver surveys via floating layers, pop-ups or pop-unders.
- Contain explicit language, spelling mistakes, or simulated expletives (e.g., #$%!)
Connected TV
Quick Reference
File Size: 10 GB
File Type: MP4
3rd Party Tags: VAST Tags accepted
- Select VPAID tags approved. Must submit for approval 5 business days before start date.
Detailed Specifications (Hosted)
Resolution Specs: For best results, include a creative from each spec type. If this isn’t possible “Mezzanine” is the optimal ad unit.
| Spec Name | File Type | Resolution | Bitrate Range (KBPS) | Frame Rate (FPS) | Audio Sample Rate |
|---|---|---|---|---|---|
| Mezzanine (Recommended) | MP4 | 1920×1080 | 15,000 – 30,000 | 29.97 | 48 kHz |
| High | MP4 | 1920×1080 | 4,000 – 6,500 | 29.97 | 48 kHz |
| Med | MP4 | 1280×720 | 1,200 – 3,500 | 29.97 | 48 kHz |
| Low | MP4 | 1280×720 | 500 – 1,200 | 23.98 or 29.97 | 48 kHz |
File Format: MPEG-4 (.mp4) format only
Audio Specs
- 2 channels only
- PCM (preferred) or AAC codec
- 192 kbps minimum
- 16 or 24 bit only
- 48 kHz sample rate
- Audio is required
Frame Rate: 23.98, 25, or 29.97 based on native frame rate (see table above)
- Remove any pull-down added for broadcast
- Constant frame rate only
- Please make content progressive using adaptive de-interlace with no frame blending.
Codec
- Apple ProRes 422 HQ codec preferred
- H.264 codec
- Interlaced video is not accepted
Audio
Audio Creative Specs
Supported audio file formats: MP3, M4A, WAV All file formats should conform to the following specifications:
| Attribute | Specs |
|---|---|
| Minimum Bitrate | 196kbs |
| Available Spot Lengths | 15, 30, or 60 seconds |
| Companion Banner File Types | JPEG/JPG, GIF, HTML |
Native

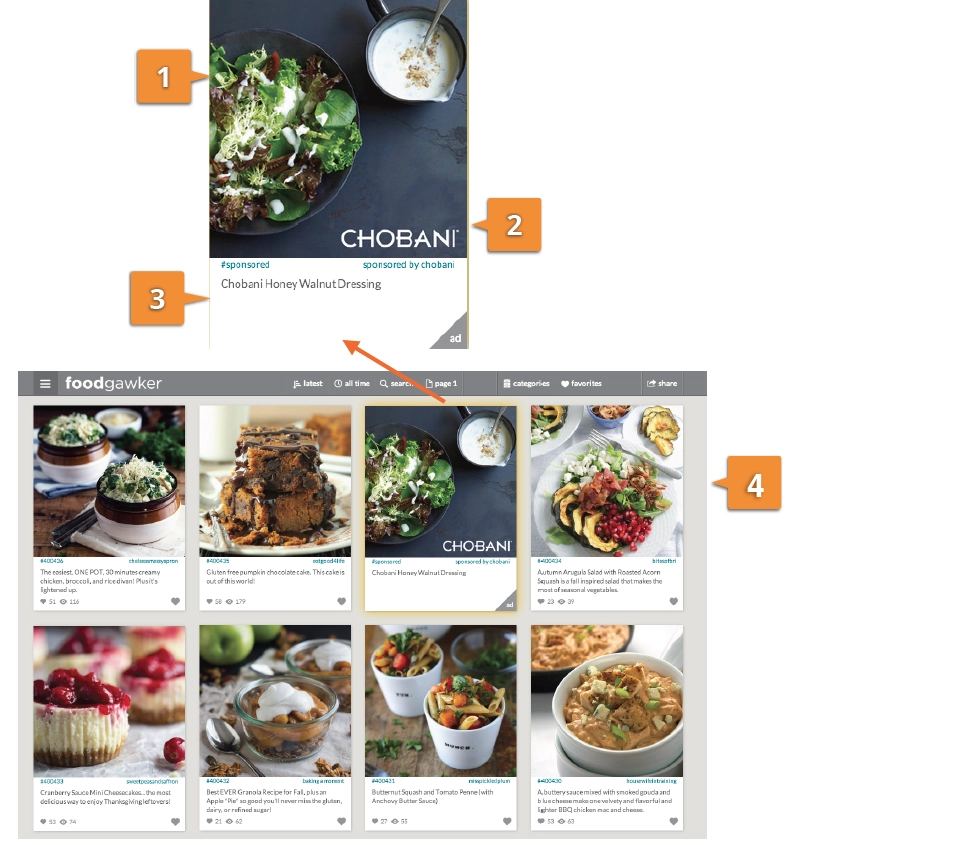

Native Advertising Specs
- Image: 5 – 10 Images within the following specs.
- Media Size: Less than 2000 x 2000 pixels
- Resolution: 72 DPI
- Format: JPEG
- File Size: Under 2 MB
- Logo
- PNG with a transparent background
- A Light and Dark version
- Ad Text
- Short Title: 25 character max
- Long Title: 90 character max
- Short Description: 90 character max
- Long Description: 140 character max
